KZ 120W Desktop Power Supply – 12V 10A Multi-Voltage Output

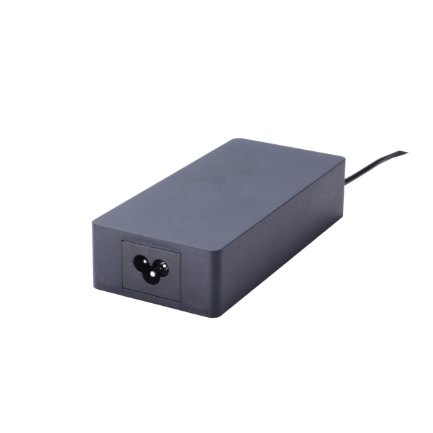

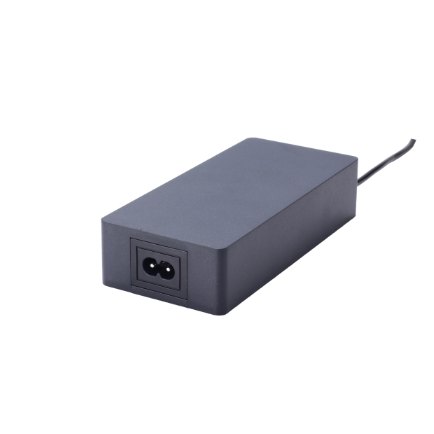

The KZ-120W is a 120-watt AC/DC desktop power supply with a universal 100-240V AC input and multi-voltage output: 12V 10A, 15V 8A, 20V 6A, 24V 5A and 48V 2.5A. Three AC inlet styles are available – IEC C14, C8 (figure-8) and C6 (cloverleaf) – to match the AC cord standard of each market.
Key Features
- Output power: 120W max
- Multi-voltage output: 12V10A / 15V8A / 20V6A / 24V5A / 48V2.5A
- Universal input 100-240V, 50/60Hz for worldwide use
- AC inlet options: IEC C14, C8 (figure-8), C6 (cloverleaf)
- AC cord plug options: CN, EU, AU, JP, US, UK
- Protections: short circuit, OVP, OTP, OCP; FCP & SCP function
- Certificated: CB, CE, FCC, 3C, PSE, UL, RCM, DOE, ERP, GEMS, GS, SAA, KC
Typical Applications
- LCD monitors and displays
- Printers and office equipment
- Routers and network devices
- CCTV and security systems
- LED lighting and strips
- Audio and video equipment
Parameter Description
| Type | Desktop power adapter (AC/DC) |
|---|---|
| Model | KZ-120W |
| Usage | Universal |
| Material | PC Fireproof Material, ABS |
| Protection | Short Circuit Protection, OVP, OTP, OCP |
| Color | Black, White |
| Function | FCP, SCP |
| Port | DC, AC |
| Input voltage and current | 100-240V, 50/60Hz |
| Output voltage and current | 12V10A / 15V8A / 20V6A / 24V5A / 48V2.5A |
| Output Power | 120W |
| Place of Origin | Guangdong, China |
| Use | Electric Products |
| Logo | Customized Logo Welcomed |
| Warranty | 1 Year |
| MOQ | 500 Pcs |
| Package | Carton |
| Plug | CN, EU, AU, JP, US, UK (AC cord options) |
| Certification | CB, CE, FCC, 3C, PSE, UL, RCM, DOE, ERP, GEMS, GS, SAA, KC |
KZ is a power adapter factory with 30 years of OEM / ODM manufacturing experience. Browse the Desktop Power Supply range, or contact us for pricing.
